1340kW 1675kVA Containerized Silent Open Diesel Generator, Cumm Engine, 3-Phase, 50/60Hz, Industrial Backup Power Support OEM

1340kW 1675kVA Containerized Silent Open Diesel Generator, Cumm Engine, 3-Phase, 50/60Hz, Industrial Backup Power Support OEM
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
ক্যানোপি: কাস্টমাইজড
ওয়ারেন্টি: 12 মাস/1000 ঘন্টা
টাইপ: নীরব (সুপার সাইলেন্ট) বা ওপেন, সাইলেন্ট, ইত্যাদি, ইন-লাইন/6-সিলিন্ডার/4-স্ট্রোক/4-ভালভ/19L, সাউন্ডপ্
কন্ট্রোল প্যানেল: LCD ডিজিটাল ডিসপ্লে, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
আউটপুট প্রকার: এসি সিঙ্গেল/থ্রি ফেজ
নিয়ন্ত্রক: ডিপসি/স্মার্টজেন/ইত্যাদি
আবেদন: ইন্ডার্স্টি ব্যাংক ইত্যাদি
রেটেড ভোল্টেজ: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
অল্টারনেটর: ম্যারাথন, স্ট্যামফোর্ড, এসএলজি/স্টামফোর্ড/ম্যারাথন/মেক্যাটল/লেরয়-সোমার, স্ট্যামফোর্ড বা নিউটেক, ইংগ
পণ্যের নাম: ডিজেল জেনারেটর, জেনারেটর 1675kVA, CUMMIN S ডিজেল জেনারেটর দ্বারা চালিত, স্ট্যান্ডবাই ইউজ পাওয়ার ডিজ
রঙ: গ্রাহকদের প্রয়োজনীয়তা
ফ্রিকোয়েন্সি: 50/60HZ
রেট পাওয়ার: 1340 কিলোওয়াট
ইঞ্জিন: আসল CUMMIN S
শীতল করার পদ্ধতি: জল-কুলিং সিস্টেম
বিশেষভাবে তুলে ধরা:

1340kW containerized diesel generator

,

Cummins industrial backup power generator

,

silent open diesel generator 50/60Hz

মৌলিক তথ্য
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: CUMMIN S
সাক্ষ্যদান: CE
মডেল নম্বার: KTA50-G15X
প্রদান
প্যাকেজিং বিবরণ: বুদ্বুদ মোড়ানো
ডেলিভারি সময়: 30 দিন
যোগানের ক্ষমতা: প্রতি মাসে 500 পিসি
পণ্যের বর্ণনা
1340kW 1675kVA Containerized Silent Open Diesel Generator

Industrial backup power solution featuring Cummins engine, 3-phase operation, and 50/60Hz frequency compatibility. Supports OEM customization.

Product Overview

The 1340kW 1675KVA BOBIG CUMMINS diesel generator (Model: KTA50-G15X) delivers reliable power for industrial, commercial, and residential applications. Built with Cummins engine technology for superior performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 1340kW (1675KVA) for demanding industrial applications
  • Frequency: 50Hz operation suitable for most electrical equipment
  • Stable prime power output ensures continuous operation under heavy loads
Engine Excellence
  • Engine Model: KTA50-G15X Cummins engine
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Advanced technology for high torque, fuel efficiency, and low emissions
Technical Specifications
Power Ratings
ParameterPrime PowerStandby Power
Rated Power (kVA)16751843
Power Rating (kW)13401474
Frequency (Hz)50
Engine ModelKTA50-G15X
Engine Speed (RPM)1500
Phase3
Power Factor0.8
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity≥ 8h @ 75% load
Dimensions & Weight
ModelBC1843 (Open)BC1843S (Silent)
Length (mm)56006100
Width (mm)21502250
Height (mm)22503050
Tank Capacity (L)30823082
Engine Details
ParameterSpecification
Engine Model & ManufacturerKTA50-G15X (Cummins)
Number of Cylinders16
Cylinder ArrangementIn-line
CycleFour stroke
AspirationTurbocharged, LTA
Bore x Stroke159 x 159 mm
Displacement50.3 L
Compression Ratio13.9:1
Prime Power/Speed1491 kW/1500 rpm
Standby Power/Speed1657 kW/1500 rpm
Fuel SystemCummins PT
Cooling SystemForce Water Cooling Cycle
Total Lubrication System Capacity47.0 L
Coolant Capacity (engine only)37.0 L
Fuel Consumption @ 100% load195 g/kWh @1500 rpm
Alternator Specifications
ParameterSpecification
Alternator BrandBOBIG
ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-454D
Rated Power1340kw/1675kva
Rated Voltage230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating
Insulation ClassH class
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Environmental Specifications
  • Ambient Temperature Range: +5°C to +40°C
  • Altitude: Suitable for use up to 1000m
  • Custom solutions available for different environmental conditions
Compliance & Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services

Customization Support: We support OEM services and customization with design drawings.

Standard Equipment: All units include original power supplies and standard DSE 6120 controller. Engine, generator, and controller options available.

Warranty & Support

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Cost-based spare parts maintenance available after warranty expiration.

Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Product Image

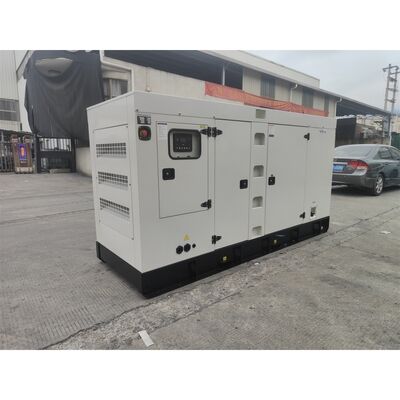

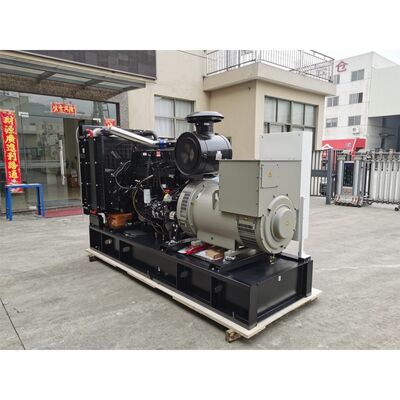

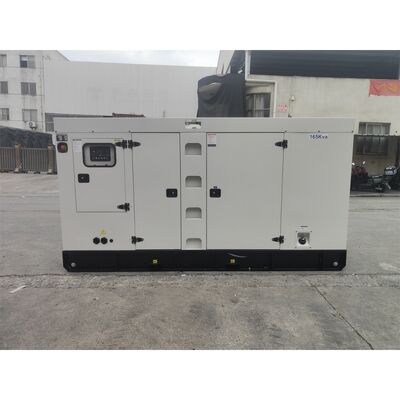

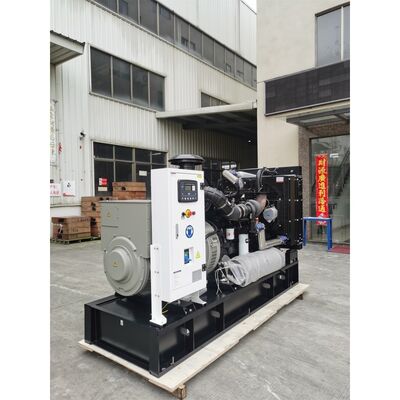

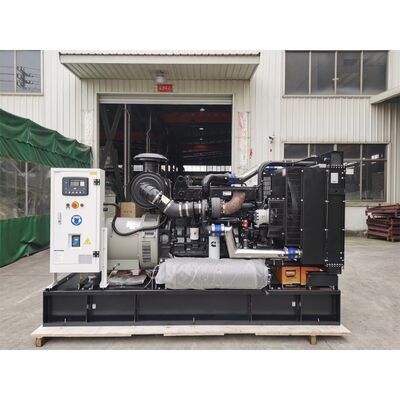

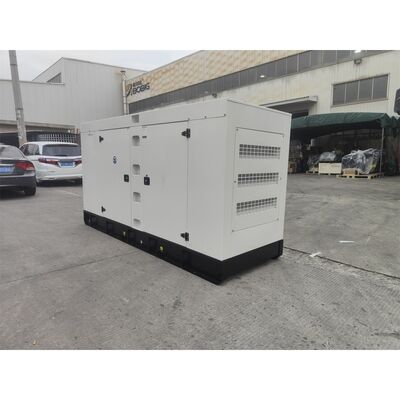

1340kW 1675kVA Diesel Generator Unit
Certifications
Product Certification 1 Product Certification 2
