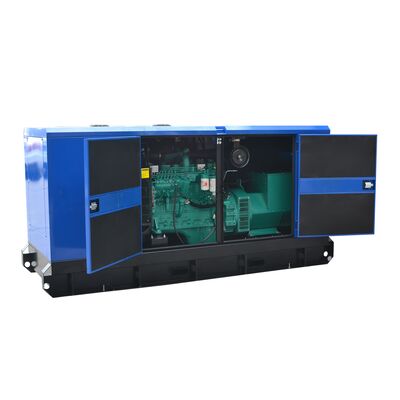

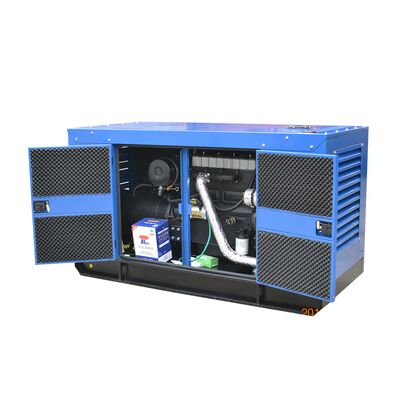

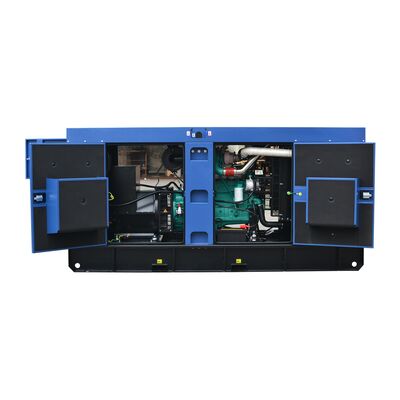

Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator

1
MOQ
8000USD-18000USD
মূল্য
Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
বিশেষভাবে তুলে ধরা:

400kw silent diesel generator

,

industrial SDEC diesel generator

,

150kw silent generator with warranty
মৌলিক তথ্য
পরিচিতিমুলক নাম: SDEC
সাক্ষ্যদান: ISO 9001
মডেল নম্বার: 6BTAA5.9-G12
প্রদান
প্যাকেজিং বিবরণ: 315*112*153 সেমি
ডেলিভারি সময়: 30 কর্মদিবস
যোগানের ক্ষমতা: প্রতি মাসে 500 পিসি
পণ্যের বর্ণনা
SDEC SC25G690D2 Diesel Generator Set
High-performance, heavy-duty diesel generator set designed for reliable prime and standby power applications. Engineered with the renowned SDEC engine, this 400kW unit features a robust soundproof canopy for low noise operation, making it ideal for construction, industrial, commercial, and emergency backup use.
Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 0 Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 500 550
Power Rating (kW) 400 440
Frequency (Hz) 50
Engine Model SC25G690D2
Engine Speed (RPM) 1500
Phase 3
Power Factor 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation period.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BSD550 (Open Type) BSD550S (Silent Type)
Length (mm) 3440 4500
Width (mm) 1350 1810
Height (mm) 2460 2360
Tank Capacity (L) 920 920
Engine Specifications
Engine Model & Manufacturer SC25G690D2 (SDEC)
Engine Type V-type, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 12
Bore × Stroke 135 × 150 mm
Displacement 25.8 lit.
Compression Ratio 16 : 1
Firing Order 1-12-5-8-3-10-6-7-2-11-4-9
Fuel Injection Advance Angle 13.5°BTDC
Dry Weight 2080 kg
Dimension 1930×1686×1872mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 0#
Fly Wheel SAE 18# (137 teeth)
Injection Pump YiJie Inline Type P Pump
Governor Electric type
Feed Pump Mechanical type
Injection Nozzle Multi hole type
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354D
Alternator Rated Power 400kW / 500kVA
Rated Voltage 230V / 400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 2
Key Benefits
  • Automatic transfer between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance scheduling
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor for user configurable functions
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility with data logging facility
  • Internal PLC editor with protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode and 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing
  • Real time clock with manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler with idle control for starting & stopping
  • Fuel level alarms and 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines including Tier 4 support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • IP65 rating (with optional gasket) for water ingress resistance
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Product Gallery
Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 3 Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 4 Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 5 Super Silent Generator 400kw 100kw 150kw 480kw 200kw diesel Industrial Generators for Sale From SDEC diesel Generator 6
