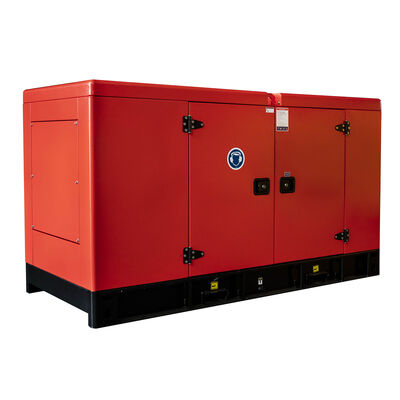

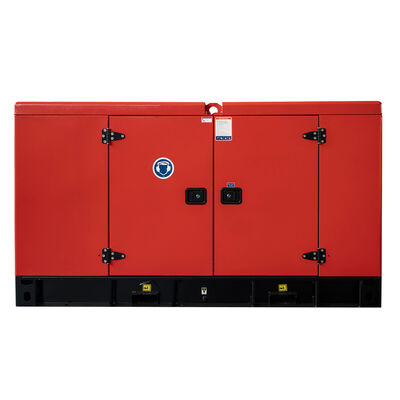

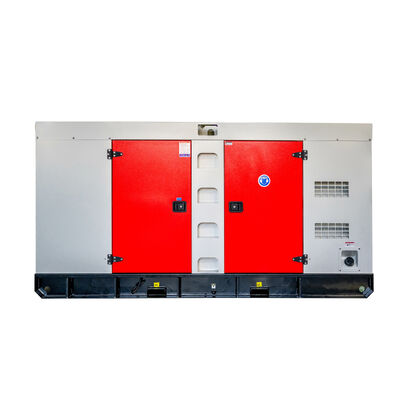

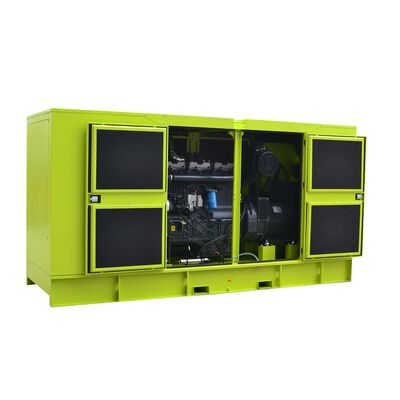

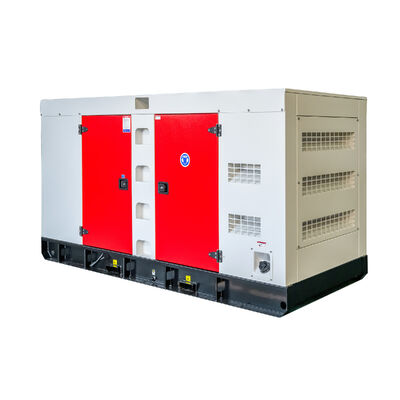

Name: Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: YN48ECD90
Price: 2,448.00 USD
Availability: InStock

বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন

বৈশিষ্ট্য

বিশেষ উল্লেখ

গতি: 1500RPM

ফ্রিকোয়েন্সি: 50/60HZ

রেট পাওয়ার: 5KW থেকে 2000KW

আউটপুট প্রকার: এসি থ্রি ফেজ

টাইপ: খোলা বা নীরব (সুপার সাইলেন্ট)

রঙ: আপনার প্রয়োজনে, কাস্টমাইজড

বিশেষভাবে তুলে ধরা:

10KW silent diesel generator

ISUZU water cooling generator

13KVA open type generator

মৌলিক তথ্য

উৎপত্তি স্থল: চীন

পরিচিতিমুলক নাম: ISUZU

মডেল নম্বার: YN48ECD90

প্রদান

প্যাকেজিং বিবরণ: পাতলা পাতলা কাঠ

ডেলিভারি সময়: 40 কর্মদিবস

পরিশোধের শর্ত: এল/সি, টি/টি

যোগানের ক্ষমতা: প্রতি মাসে 50 সেট

গ্যালারী

Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling

পণ্যের বর্ণনা

ISUZU Diesel Generator 10KW/13KVA - Open/Silent Type

Factory-priced ISUZU diesel generator available in both open and silent configurations with water cooling system. This reliable 10KW/13KVA power supply unit delivers consistent performance for various industrial applications with advanced features and robust construction.

Key Features

Premium brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General Information

Specification	Prime Power	Standby Power
Rated Power (kVA)	23	25
Power Rating (kW)	18	20
Frequency (Hz)	50
Engine Model	JE493DB-04
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP (Prime Power): Available for unlimited annual hours in variable load applications per GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation period.

ESP (Standby Power): Designed for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability at this rating.

Dimensions and Weight

Model	BJL25 (Open Type)	BJL25S (Silent Type)
Length (mm)	1400	2000
Width (mm)	610	850
Height (mm)	1150	1050
Tank Capacity (L)	41	41

Engine Specifications

Engine Model & Manufacturer	JE493DB-04 (ISUZU)
Engine Type	Water cooling, in line, four-stroke, wet liner and direct injection machinery or electronic
Number of Cylinders	4
Bore×Stroke (mm)	93×102
Aspiration	Natural
Displacement	2.771
Compression Ratio	18.2:1
Firing Order	1-3-4-2
Rated Output (Kw)	21
Maximum Power (Kw)	24
Rated Speed (r/min)	1500
Idling Speed (r/min)	850
Oil Consumption Rate (g/kW.h)	≤230
Overall Dimension (mm)	856×601×810
Net Mass (kg)	230
Steady Speed Adjusting Ratio	Machinery ≤5%, Electronic ≤1%
Lubricating Method	Pressure lubrication and splash
Starting Method	Electric motor start
Crankshaft Rotating Direction	Clockwise (from front view)
Oil Sump Capacity (L)	5.6
Oil Specification	≥API CF-4
Oil Pressure (MPa)	0.1－0.50
Noise (dB(A))	≤93dB(A)
FSN (Rated Output)	＜3.0
Exhaust Temperature (℃)	＜500
Oil Temperature (℃)	＜110
Cooling Water Temperature (℃)	85±10

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-184E
Alternator Rated Power	18kw/23kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%
