Name: Factory Price Open/Silent Type Doosan Diesel Generator 610KW/763KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: DP222CA
Price: 14,883.00 USD
Availability: InStock

বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন

বৈশিষ্ট্য

বিশেষ উল্লেখ

গতি: 1500RPM

ফ্রিকোয়েন্সি: 50/60HZ

রেট পাওয়ার: 5KW থেকে 2000KW

আউটপুট প্রকার: এসি থ্রি ফেজ

টাইপ: খোলা বা নীরব (সুপার সাইলেন্ট)

রঙ: আপনার প্রয়োজনে, কাস্টমাইজড

বিশেষভাবে তুলে ধরা:

Doosan silent diesel generator 610KW

water cooling diesel generator 763KVA

open type diesel generator with warranty

মৌলিক তথ্য

উৎপত্তি স্থল: চীন

পরিচিতিমুলক নাম: DOOSAN

মডেল নম্বার: DP222CA

প্রদান

প্যাকেজিং বিবরণ: পাতলা পাতলা কাঠ

ডেলিভারি সময়: 40 কর্মদিবস

পরিশোধের শর্ত: এল/সি, টি/টি

যোগানের ক্ষমতা: প্রতি মাসে 50 সেট

গ্যালারী

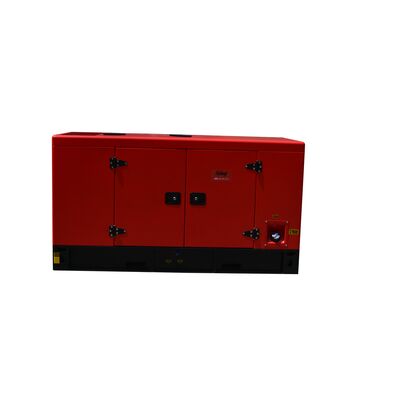

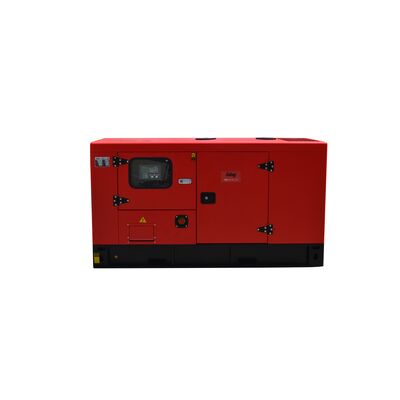

Factory Price Open/Silent Type Doosan Diesel Generator 610KW/763KVA Power Supply Water Cooling

পণ্যের বর্ণনা

Factory Price Open/Silent Type Doosan Diesel Generator 610KW/763KVA Power Supply Water Cooling

Product Overview

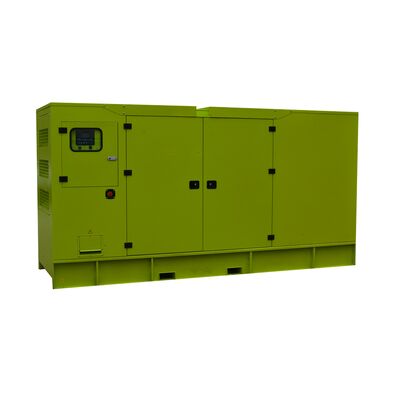

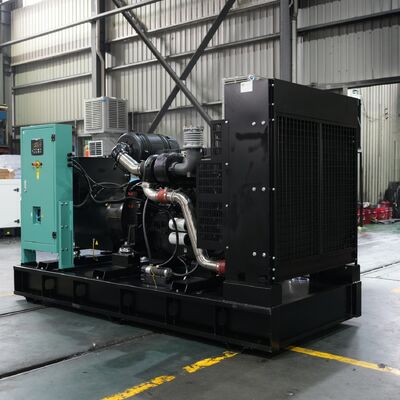

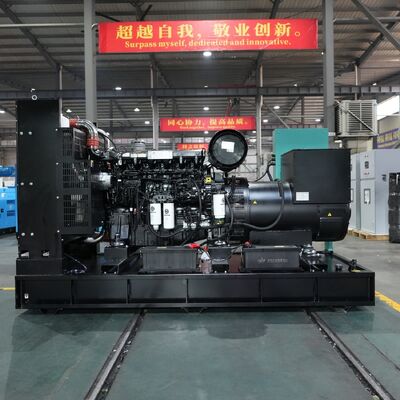

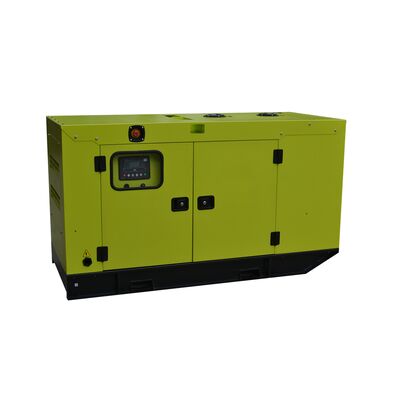

High quality water cooling DOOSAN diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation

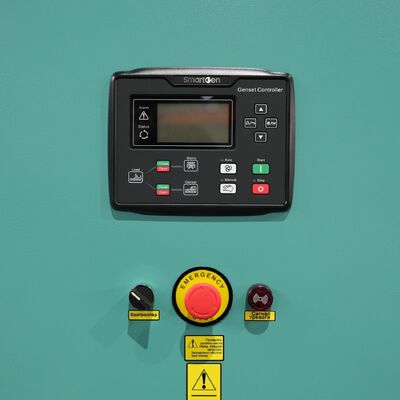

Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance

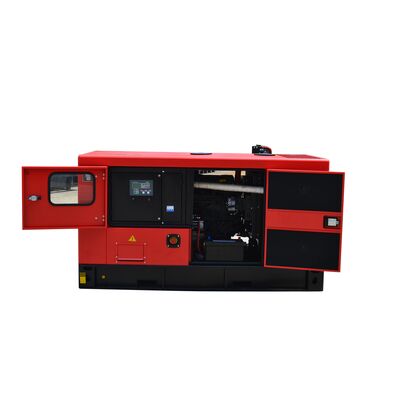

Double open doors on both sides for comprehensive engine and alternator access

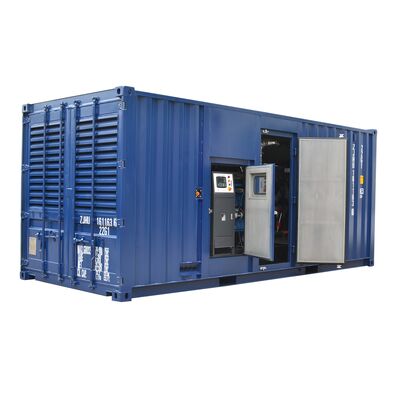

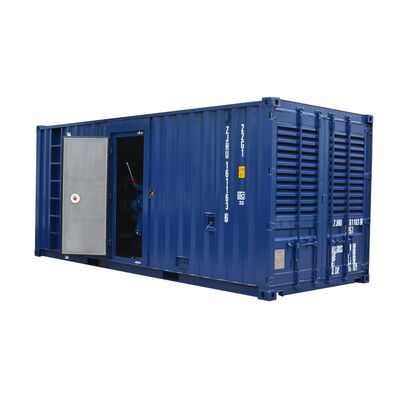

Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General information	Prime power	Standby power
Rated Power (kVA)	763	839
Power Rating (kW)	610	671
Frequency (Hz)	50
Engine Model	DP222CA
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated voltage (V)	400/230
Fuel tank capacity operating time	≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Dimension and Weight	Open type	Silent type
Model	BDO839	BDO839S
Length (L) mm	4500	5600
Width (W) mm	1800	2200
Height (H) mm	2745	2550
Tank capacity (L)	1403	1403

Note: Specifications and illustrations are subject to revision without notice.

Engine Specifications

Engine model & manufacturer	DP222CA(DOOSAN)
Engine Model	DP222CA
Engine Type	4-Cycle, V-Type, 12-Cylinder Diesel, water cooled, Turbo charged & intercooled
Bore x stroke	128 x 142 mm
Displacement	21.927 liters
Compression ratio	14.6 : 1
Rotation	Counter clockwise viewed from flywheel
Firing order	1-12-5-8-3-10-6-7-2-11-4-9
Dry weight	1,676 Kg (W/O Fan)
Dimension (LxWxH)	1,658 x 1,593 x 1,701 mm
Speed drop	G3 Class ( KS R ISO 8528-5 )
Injection timing	Controlled by ECU
Flywheel housing	SAE NO.0 (18 Inch.)
Flywheel	Clutch NO.18M
Number of teeth on flywheel ring gear	117

Engine Components

Heavy duty diesel engine
Starter battery (with lead acid) including rack and cables
Anti-vibration mount
Flexible fuel connection hoses
Replaceable fuel filter, oil filter & air filter
Exhaust silencer and bellows
Cooling radiator and fan
Operation manuals and circuit diagram documents

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-404C
Alternator Rated Power	610kw/763kva
Rated voltage (V)	230v/400v
Rated frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%
