125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators 100kw

125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
ক্যানোপি: কাস্টমাইজড
ওয়ারেন্টি: 12 মাস/1000 ঘন্টা
টাইপ: নীরব (সুপার সাইলেন্ট) বা ওপেন, সাইলেন্ট, ইত্যাদি, ইন-লাইন/6-সিলিন্ডার/4-স্ট্রোক/4-ভালভ/19L, সাউন্ডপ্
নিয়ন্ত্রণ প্যানেল: LCD ডিজিটাল ডিসপ্লে, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
আউটপুট প্রকার: এসি সিঙ্গেল/থ্রি ফেজ
নিয়ন্ত্রক: ডিপসি/স্মার্টজেন/ইত্যাদি
প্রয়োগ: ইন্ডার্স্টি ব্যাংক ইত্যাদি
রেটেড ভোল্টেজ: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
বিকল্প: ম্যারাথন, স্ট্যামফোর্ড, এসএলজি/স্টামফোর্ড/ম্যারাথন/মেক্যাটল/লেরয়-সোমার, স্ট্যামফোর্ড বা নিউটেক, ইংগ
পণ্যের নাম: ডিজেল জেনারেটর, জেনারেটর 125kva , YTO ডিজেল জেনারেটর দ্বারা চালিত, স্ট্যান্ডবাই ইউজ পাওয়ার ডিজেল জে
রঙ: গ্রাহকদের প্রয়োজনীয়তা
ফ্রিকোয়েন্সি: 50/60Hz
রেট পাওয়ার: 125kVA
ইঞ্জিন: আসল YTO
কুলিং পদ্ধতি: জল-কুলিং সিস্টেম
বিশেষভাবে তুলে ধরা:

125KVA super silent diesel generator

,

water cooled low noise genset

,

portable 3phase electrostatic generator

মৌলিক তথ্য
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: YTO
সাক্ষ্যদান: CE
মডেল নম্বার: LR4M3L - D88
প্রদান
প্যাকেজিং বিবরণ: পাতলা পাতলা কাঠ
ডেলিভারি সময়: 30 দিন
যোগানের ক্ষমতা: প্রতি মাসে 500pcs
পণ্যের বর্ণনা

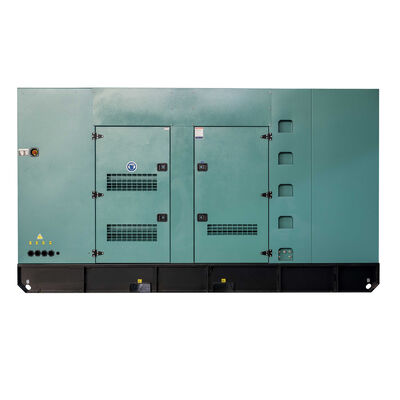

125KVA Water Cooled Generator Super Silent Diesel Genset
Product Overview

Our 100kW 125KVA BOBIG YTO diesel generator (Model: LR4M3L-D88) provides reliable power for industrial, commercial, and residential applications. Backed by the YTO brand, it delivers high-quality performance and long-term durability.

Key Features
Power Performance

Rated at 100kW (125KVA), this generator meets diverse power needs with stable, efficient output. Operating at 50Hz standard frequency, it's compatible with most electrical equipment.

Engine Excellence

Powered by the LR4M3L-D88 YTO engine featuring advanced technology, high torque, fuel efficiency, and low emissions. Running at 1500 RPM for smooth, consistent power delivery.

Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 125 138
Power Rating (kW) 100 110
Frequency (Hz) 50
Engine Model LR4M3L-D88
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for unlimited annual hours in variable load applications per GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.

ESP (Standby Power): For emergency power during utility interruptions. No overload capability available.

Engine Details
Engine Model & Manufacturer LR4M3L-D88 (YTO)
No. of Cylinders 4
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Air Aspiration Turbocharged with Aftercooler
Cooling Medium Liquid
Bore 110 mm
Stroke 125 mm
Compression Ratio 17.0:1
Cubic Capacity 4.75 L
Dry Engine Weight 450 kg
Dimension (L*W*H) 986*1146*713 mm
Rotation Direction Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-3-4-2 (1cyl furthest from flywheel)
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274D
Rated Power 100kW/125kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Specific Fuel Consumption ≤202g/kW.h
Transient State Voltage ≤-15%~+20%
Dimensions and Weight
Model BYT138 (Open type) BYT138S (Silent type)
Length (mm) 2350 2750
Width (mm) 800 1040
Height (mm) 1580 1400
Tank Capacity (L) 230 230
Environmental Adaptability

Ambient Temperature: Operates effectively from +5°C to +40°C

Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)

Compliance Standards

Our generator complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, ensuring quality, safety, and reliability.

Applications
  • Industrial Use: Backup power for factories to ensure continuous production
  • Commercial Buildings: Power for offices, shopping malls, hotels, and essential services
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). During warranty, we provide free replacement of defective parts. After warranty expiration, we offer cost-effective spare parts and maintenance services.

Why Choose Our Generators
  • Brand Reputation: YTO is a trusted brand with proven reliability
  • Quality Assurance: Manufactured to international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on specific requirements
  • Technical Support: Professional after-sales service available 24/7
Company Information

We are an electrical machinery manufacturer with 10,000 square meters of factory area, including 1,000sqm of standard construction. With 160 employees (20 technicians), we produce gasoline generators, diesel generators (5-2000kVA), gas generators, and pumps. Our ISO9000 certified facility ensures consistent quality and reliability.

Factory & Facilities
125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 0 125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 1
Workshop
125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 2 125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 3
Equipment
125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 4 125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 5
Production
125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 6 125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 7
Testing
125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 8 125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 9
Packaging
125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 10 125KVA Water Cooled Generator Super Silent Diesel Genset Low Noise 3phase Portable Diesel Electrostatic Generators  100kw 11
Frequently Asked Questions
What is your MOQ, payment method, and delivery time?

MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Alternative methods: 100% L/C, Trade Assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.

Which port do you use for export?

Fuzhou port, Fujian province or as requested by customer.

Do you provide spare parts for maintenance?

Yes, we provide regular engine filters (air, water, fuel, oil) for customer self-maintenance.

Can you offer replacement parts when needed?

Yes, we can provide parts at any time (not limited to warranty period), typically shipped within 3-5 days.

Can you customize voltage, frequency, tank capacity, phase, and color?

Yes, all specifications can be customized according to your requirements.

What is your distribution policy?

We welcome distributors worldwide. We provide authority certificates and sign distribution agreements accordingly.
